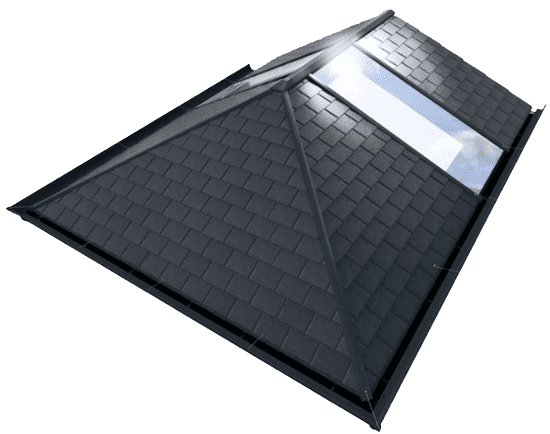

UltraRoof Tiled Conservatory Roof
Ultraframe UltraRoof 380
The lightest tiled conservatory roof available, Ultraroof is both easy and fast to fit with an unrivalled quality finish.

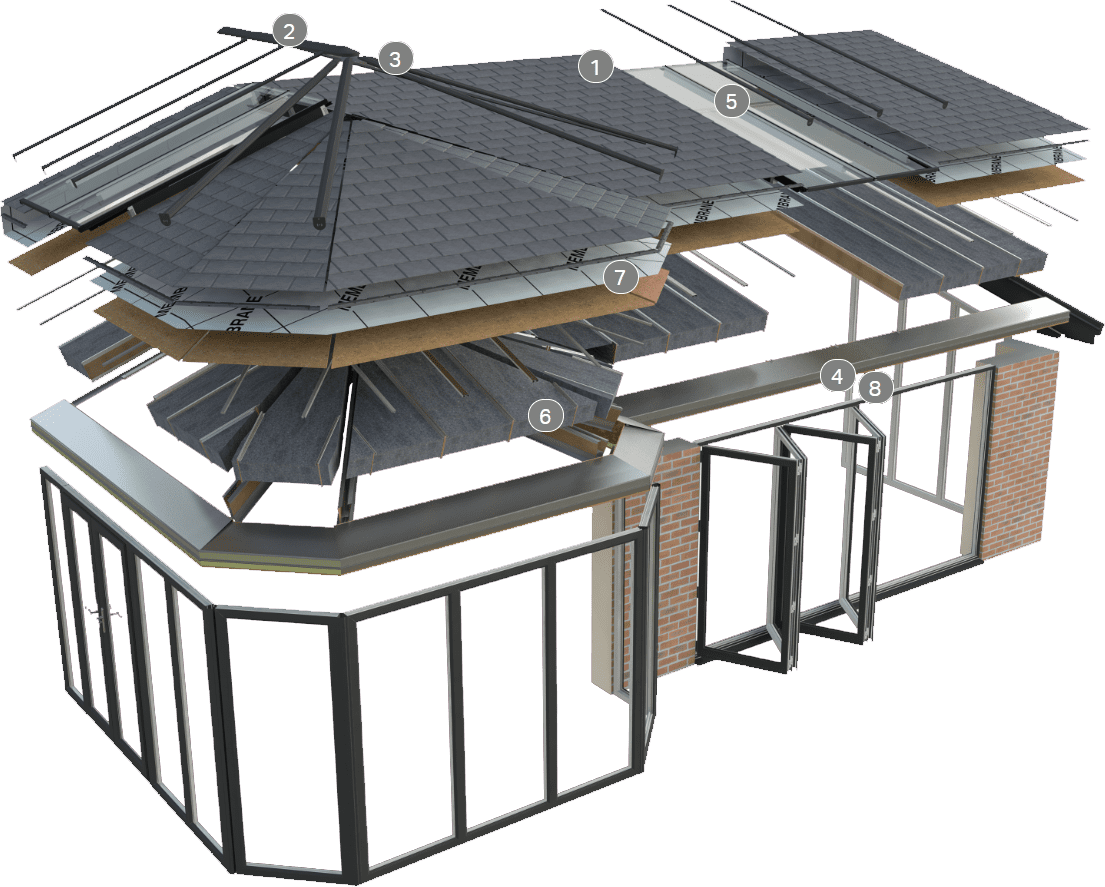

What Makes Up an Ultraroof Tiled Conservatory Roof?
2 Fully insulated ridge
3 Slimline aluminium hip and ridge cappings
4 Fully insulated box beam eliminates the risk of condensation
5 Full length glazing panels
6 Structural insulation panels
7 Breathable waterproof membrane
8 The beam is strong enough to support large spans of bi-folds

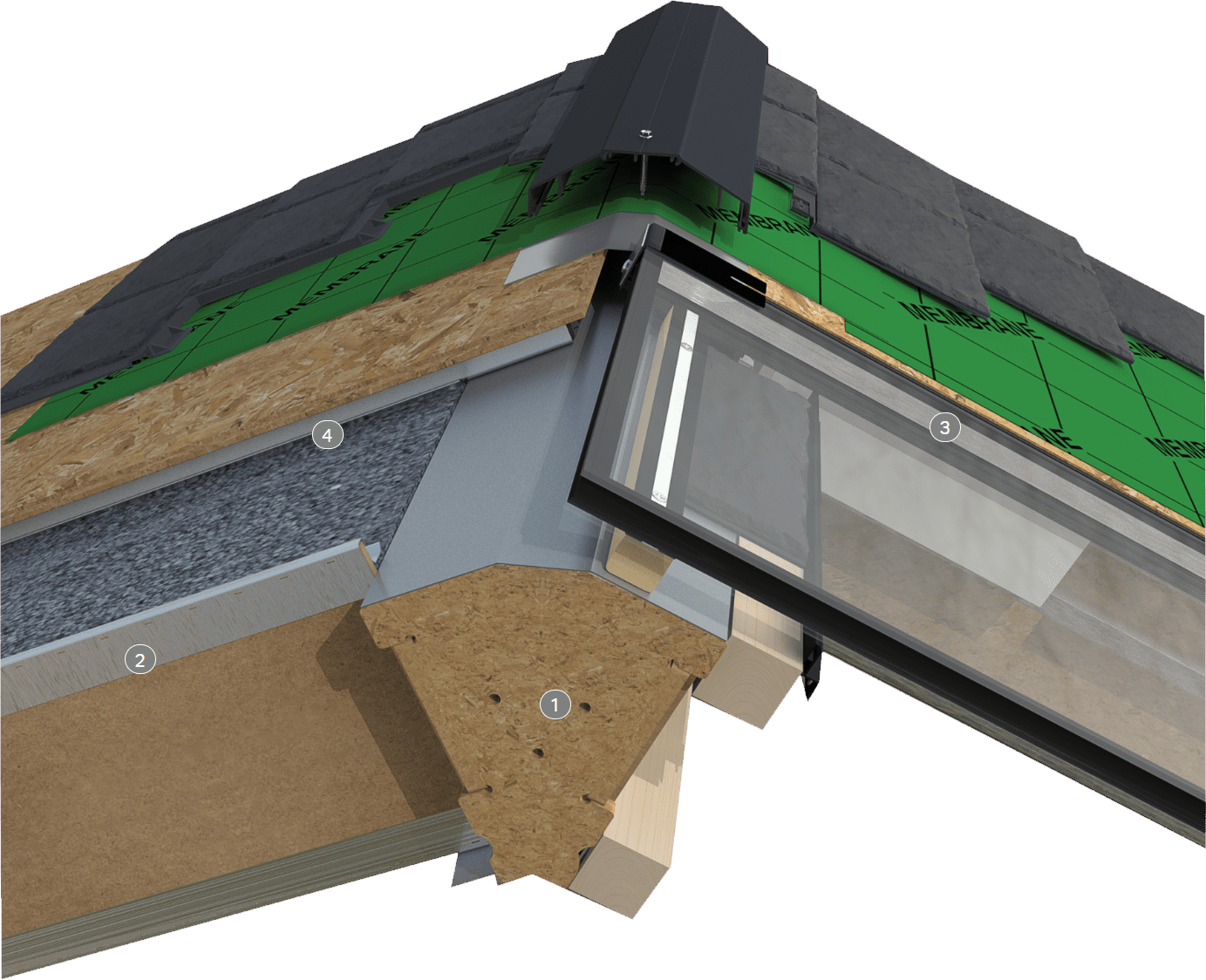

New Ultraroof Ridge Assembly
2 ‘I’ Beam Edged Panels – For Increased Projections
3 New Simplified Glazing Bar Attachment – For Faster Glazing
4 External Panel Clips – No Battening Needed

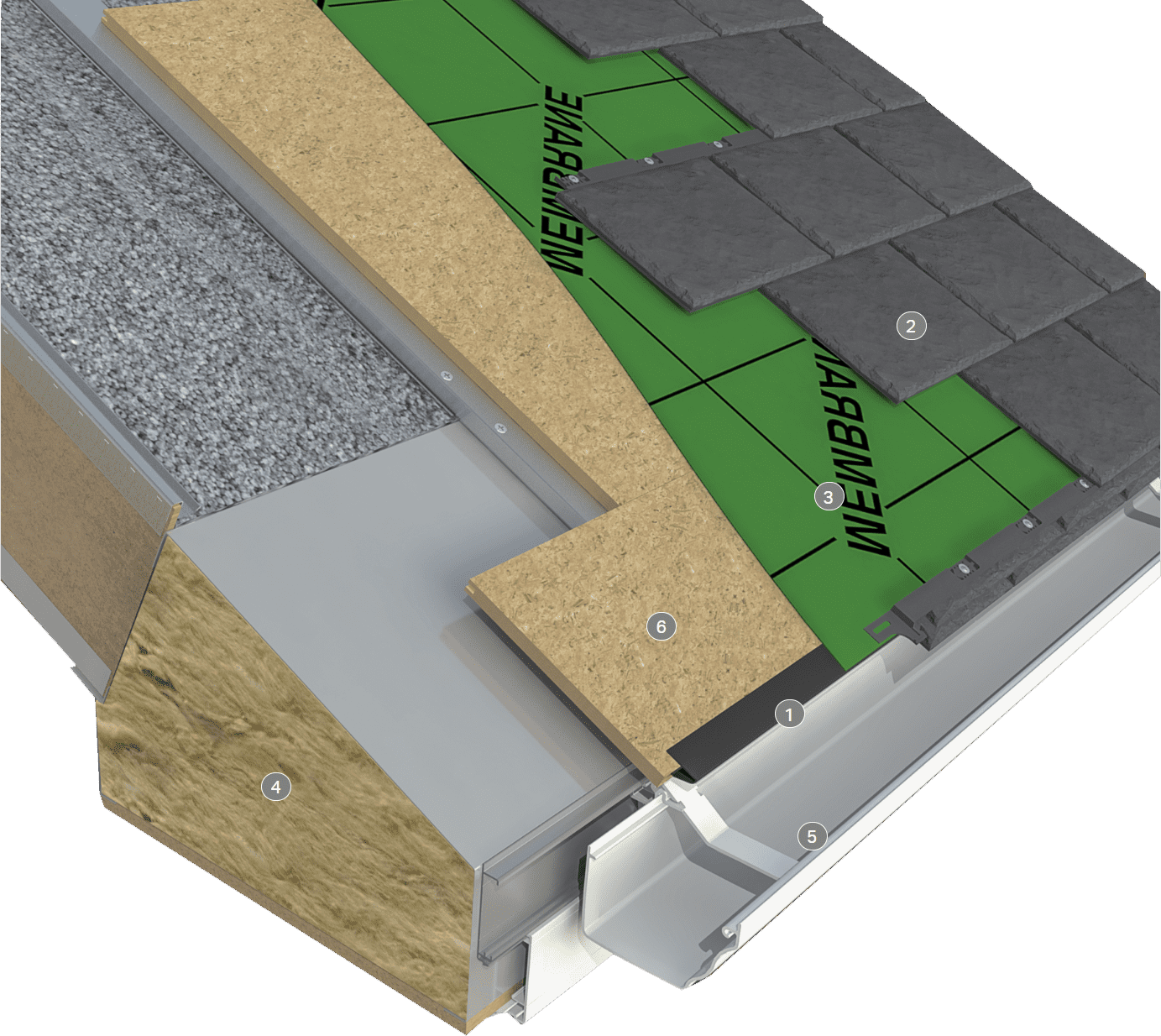

UltraRoof Specification Overview
2 UltraTile in 3 colours
3 High performance breathable water proofing under layer
4 Ultrapanel, 0.17W/m2 ºC
5 Integrated Marley Classic gutter system
6 OSB/3 Boards -Suitable for load bearing applications in humid conditions
Key Tiled Conservatory Roof Information
A simple lightweight tiled conservatory roof, perfect for updating old conservatory roofs in as little as one day. Extremely lightweight, strong and easy to install, the Ultraroof is faster and simpler than any other solid conservatory roof on the market.
- Rapid installation process
- Comes with Ultratile engineered copolymer interlocking slate tile- in 3 colours
- Incorporate large rectangular glass panels – massive saving over roof windows
- Off site manufactured, three simple system components
- No tie beam – ever!
- Features small external soffit and internal pelmet
- Full third party accreditation – LABSS System Approval – JHAI System Approval
- Weight only 38Kg/m² – less than others, not much more than a glass roof
- Compatible with the curved Cornice for extra Style
- All external items included – eg. gutter fascia
Tile Colour Options
(Colours here are a guide, for true colours please refer to a product sample)
Easy to fit..
Ultraroof is a tiled conservatory roof, perfect for the speedy replacement of tired conservatory roofs. Ultraroof is classed as a ‘warm roof’ and gives a vaulted/loft type ceiling. There are three major elements to Ultraroof:
2 Aluminium Framework – A hidden structural aluminium framework for hips, ridge, and starter bars.
3 Structural Roof Panels – Mechanically fixed Structural Insulated Roof Panels are attached to the box eaves and structural framework.
(Colours here are a guide, for true colours please refer to a product sample)

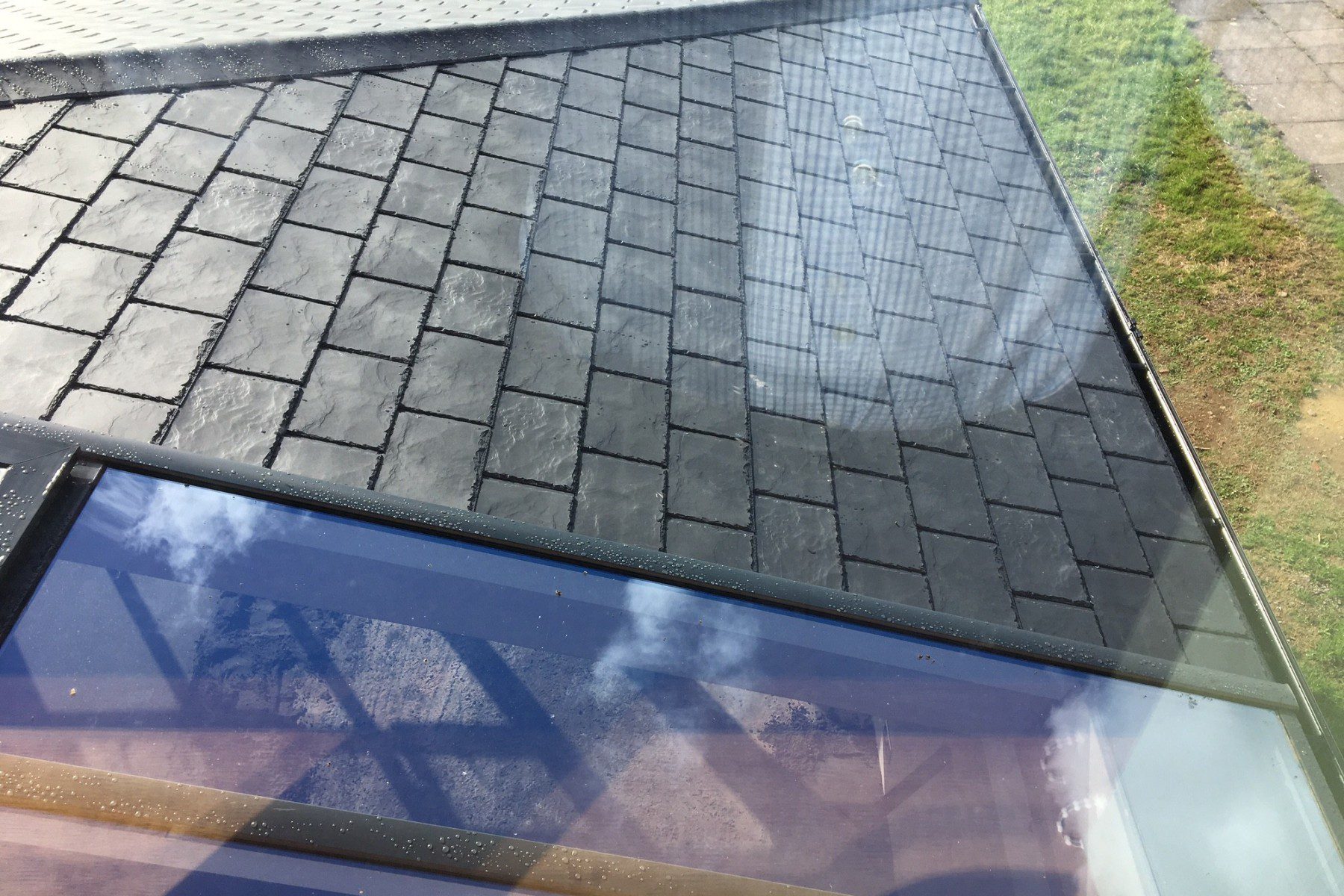

Tiled Conservatory Roof Glass Panels
Full rectangular glass panels can be integrated to maintain light into any adjacent room. These panels can also be solar controlled, something not possible with a regular rooflight.

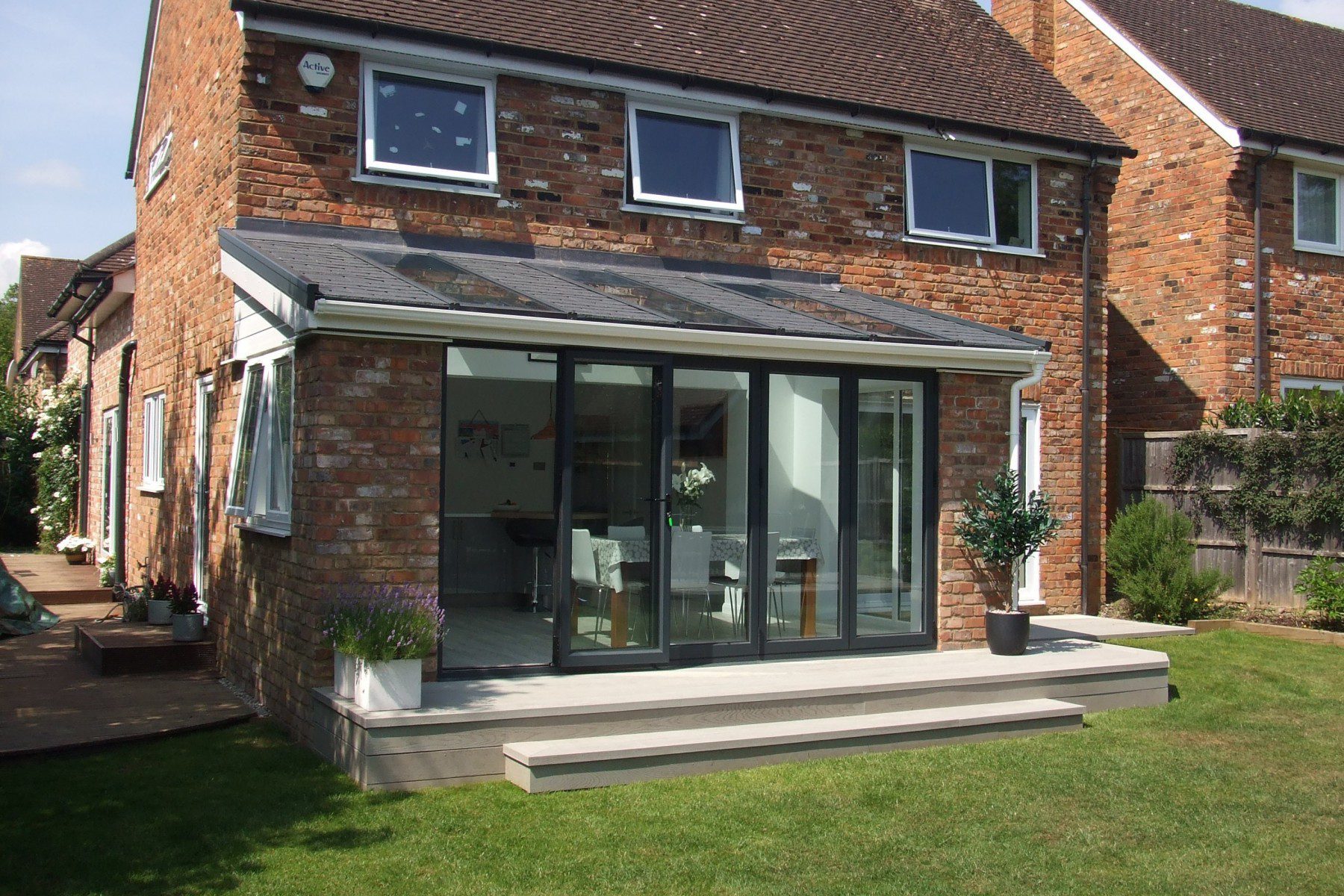

Strongest Tiled Conservatory Roof
The Ultraroof tiled conservatory has superior strength for larger designs and NEVER needs a tie bar. Each roof is precision engineered to wind and snow load requirements of the postcode of the installation.

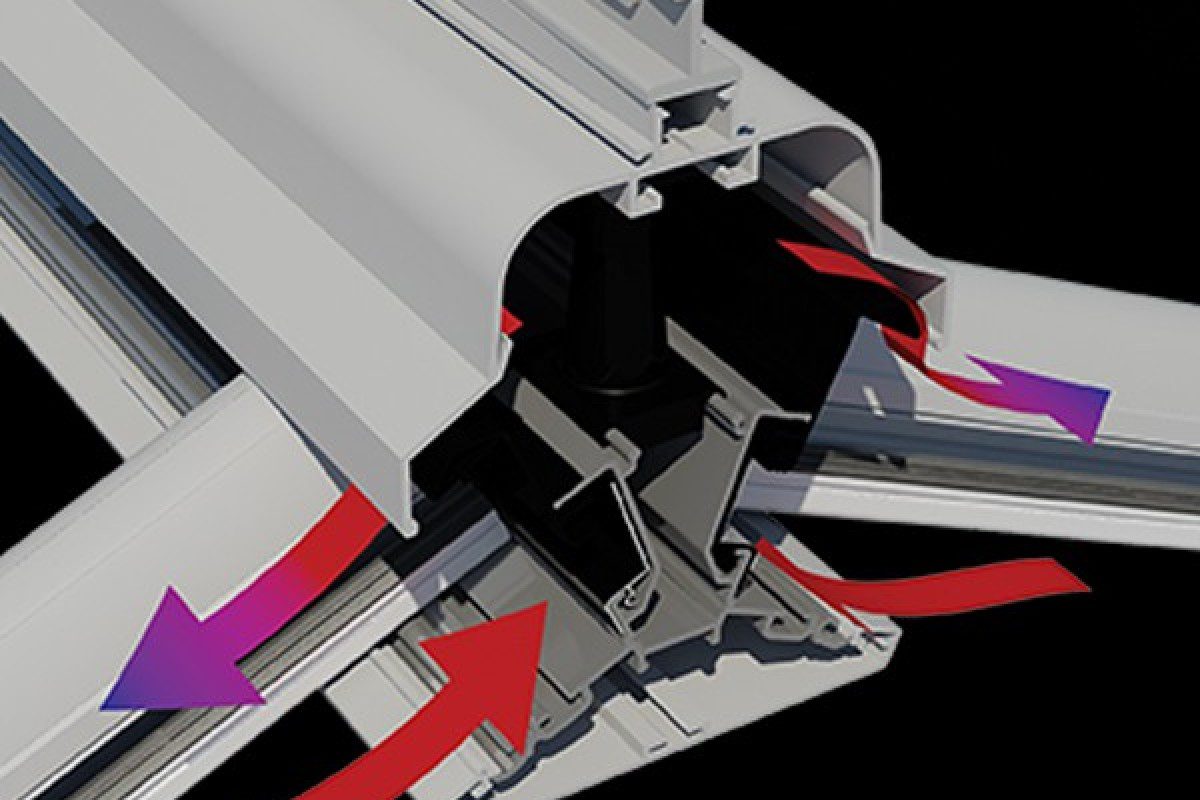

TRICKLE VENTILATION SYSTEM IN THE CONSERVATORY ROOF RIDGE
Harness natural upward movement of warm air to carry stale, moist air to the roof apex for venting outside. Covering 300mm² of ventilation per linear metre of ridge, this is standard in all duo pitch (Victorian, Georgian, Gable etc) Classic roofs. A version of this feature is included in the wallplate in lean to designs.
It’s vital to the maintenance of a confortable environment – ventilation is often overlooked by both consumers and manufacturers, but not by Ultraframe, who are still the only conservatory roof brand to offer in built trickle ventilation as standard.
10 YEAR MANUFACTURER GUARANTEE ON ALL CONSERVATORY ROOFS AND INSULATED GLAZING PANELS
Conservatory Roof Upgrades & Extras

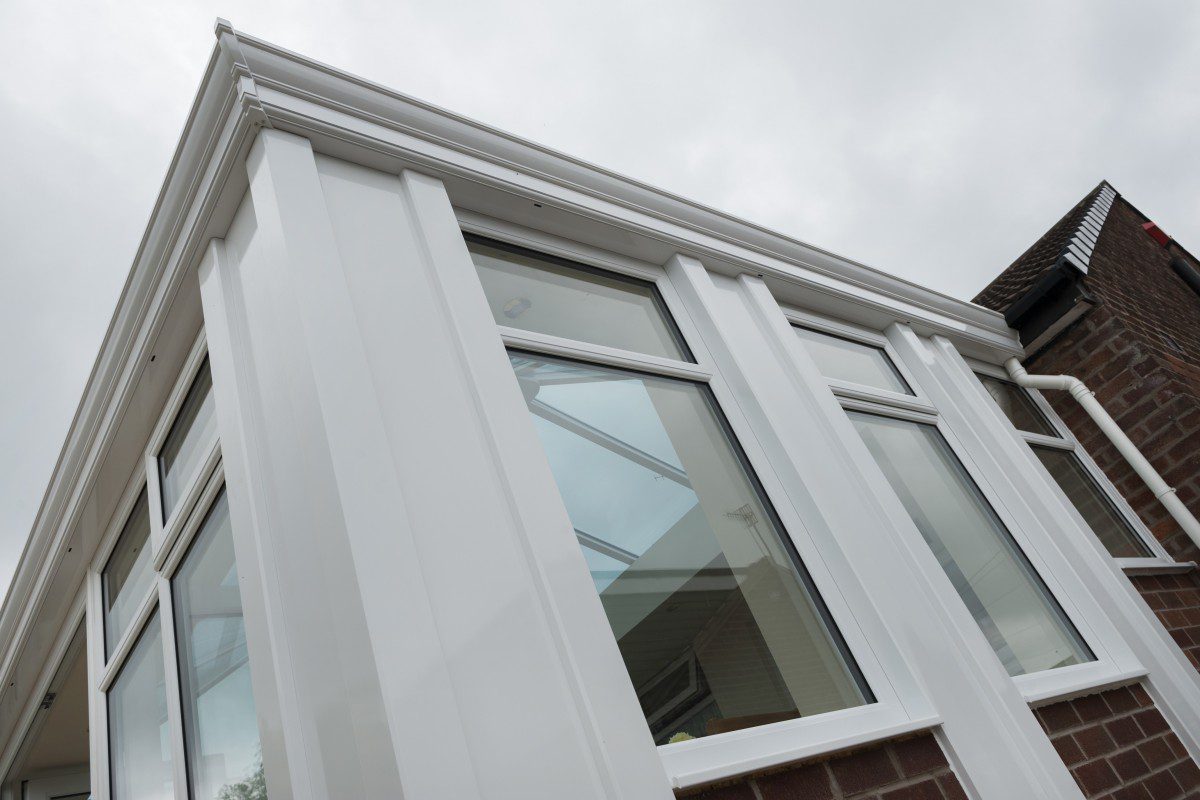

A decorative cornice adds shape and style to any roofline, concealing gutters and rafter ends. Best of all there are 4 styles to choose from.
Design the width of the internal pelmet, suiting any new room from 300mm to 1200m. The added insulation in the pelmet will ensure your new orangery or extension is always warm, welcoming, and cosy.
The curved cornice includes a die cast 135° and 90° corner cover as well as straight jointers, which will help fitters achieve a consistent fit and finish at critical junctions. 1, 2 & 3 tier Cornice ONLY 90° corners and straight jointers available.
Insulated Internal Lighting Pelmet
The insulated internal pelmet uses the well proven Ultraframe classic glazed roof at its heart and then adds an engineered framing system internally, which is plastered to give a perimeter ceiling all the way round. This creates something that is neither conservatory nor extension.
It combines all the benefits of the former in terms of light and then fuses this with the solidity and feel of an extension. This effect can be played up or down depending on whether glazed walls or masonry walls are specified. All of this can be achieved at a price point not dissimilar to that of a standard conservatory.
Check out our LivinRoom range of conservatory roofs for more information on conservatory roofs with internal lighting soffits.
The Conservatory Roof Shop provide the best technical support to our trade customers. We will ensure that your design is 100% correct and aesthetically pleasing. CAD drawings can also be provided for you to professionally present to your customer; if need be.
We will always provide the best trade prices for our conservatory roof systems. Together with the rest of our service package, we know that our prices will give you the best opportunity to sell conservatories. We can back this statement with a “NEVER KNOWINGLY BEATEN ON PRICE”, where we will match any like for like quotation
Conservatory Roof Shop are the industry-leading brand in the provision of fconservatory roofing products: Ultraframe conservatories, LivinRoom orangeries, Ultraroof home extensions, conservatory roofs, replacement conservatory roofs, Ultrasky roof lanterns, Ultrasky flat rooflights, windows and doors.
